How to Select the Right Safety Valve: A Complete Guide for Industrial Plants

Why Correct Selection Is a Critical Safety Decision

A safety valve is not merely a component — it is the last line of defence between a stable process and a catastrophic failure. Whether you manage a high-pressure steam system, a chemical reactor, or a cryogenic storage facility, the correct specification of a pressure relief device is a non-negotiable engineering requirement. Yet, in practice, wrong selections still account for a significant share of industrial accidents and regulatory non-compliances worldwide.

An incorrectly sized or specified safety valve can fail in two equally dangerous ways: it can open prematurely, causing process disruption and accelerated seat wear, or — more critically — fail to open at all when pressure exceeds safe limits. The consequences range from costly unplanned downtime to explosive decompression events with potential loss of life.

Regulatory frameworks such as the European Pressure Equipment Directive (PED 2014/68/EU), ASME Section VIII, and ISO 4126 have been established precisely to standardise the design, testing, and selection of pressure relief devices. Compliance is mandatory in most jurisdictions and constitutes the minimum baseline for any safe installation.

Key Parameters to Define Before Selection

Before consulting datasheets or catalogues, the following process parameters must be clearly established:

• Set Pressure (Ps): The pressure at which the valve begins to open. Must be ≤ the Maximum Allowable Working Pressure (MAWP) of the protected equipment.
• Back Pressure: Downstream pressure that opposes opening. Conventional valves are limited to back pressures below 10% of set pressure; balanced-bellows or pilot-operated designs tolerate significantly higher values.
• Required Relieving Capacity (Qr): The mass or volumetric flow rate that must be discharged to prevent pressure build-up, calculated based on the worst-case scenario (fire case, blocked outlet, cooling failure, etc.).
• Fluid Type and Phase: Gas, vapour, liquid, or two-phase flow each follow different sizing methodologies per API 520/521 and ISO 4126-1/7.
• Operating Temperature: Impacts material selection and the valve’s mechanical behaviour. Cryogenic applications require special trim and body materials.
• Fluid Hazard Classification: Toxic, flammable, or oxidising fluids may require closed-discharge (ATEX-rated) designs to comply with Directive 2014/34/EU.

Choosing the Right Valve Type

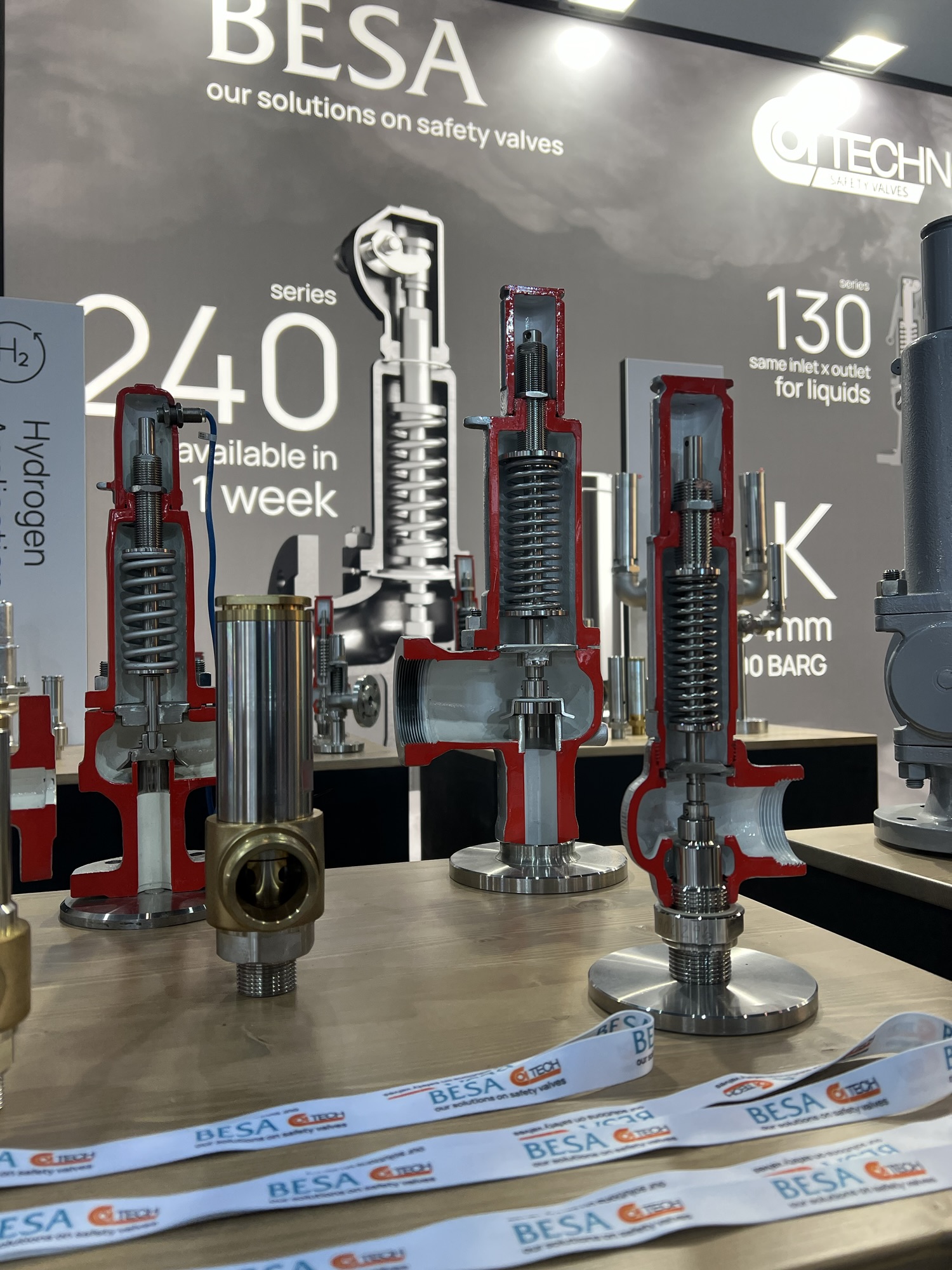

Conventional Spring-Loaded Safety Valves

The workhorse of the industry. Suitable for clean, non-viscous fluids with stable back pressure. Simple, reliable, and cost-effective — conforming to ISO 4126-1 and ASME PTC 25. Ideal for steam, compressed air, and non-corrosive gas services.

Balanced-Bellows Safety Valves

When back pressure is variable or high (up to 50% of set pressure), balanced-bellows designs prevent back pressure from affecting opening characteristics. The bellows also protect internal spring mechanisms from corrosive process fluids, making them well suited to chemical and petrochemical applications.

Pilot-Operated Pressure Relief Valves (POPRV)

For systems operating close to set pressure (>90% operating ratio), pilot-operated valves eliminate simmer and leakage that would affect conventional designs. They are the preferred choice for high-pressure pipelines, compressor protection, and storage vessels where tight shut-off is paramount. Compliant with ISO 4126-4 and API 526.

Material Selection: More Than a Catalogue Choice

Material compatibility is one of the most underestimated aspects of safety valve selection. The body, disc, seat, and spring must all resist the process fluid at operating temperature without degradation or corrosion.

• Carbon Steel (WCB / LCB): Cost-effective standard choice for non-corrosive services in moderate temperature ranges (–29°C to +425°C).
• Stainless Steel (CF8M / 316L): Excellent corrosion resistance for chemical and food-grade applications; suitable from cryogenic temperatures up to +600°C.
• Duplex & Super Duplex (2205 / 2507): Outstanding resistance to chloride stress corrosion cracking; ideal for offshore and marine environments.
• Nickel Alloys (Inconel, Hastelloy): For highly aggressive media — concentrated acids and high-temperature oxidising environments — where standard stainless steels are insufficient.
• PTFE-Lined & Special Elastomers: Seats and sealing elements in PTFE, Viton, or EPDM for chemical compatibility where metallic seating is not adequate.

Common Selection Errors to Avoid

• Oversizing: A valve with excessive relieving capacity will chatter — rapid, repeated opening and closing — causing seat damage and premature failure. Always size to the actual required capacity, not to the maximum possible.
• Ignoring back pressure: Installing a conventional valve in a header with significant back pressure causes set pressure to shift unpredictably. Use balanced or pilot-operated designs where needed.
• Neglecting the fire-case scenario: Many installations are sized for process upset only, omitting the fire-case calculation required by API 521 and ISO 4126-7. This can result in a catastrophically undersized valve.
• Excessive inlet pressure drop: Inlet piping pressure drop must not exceed 3% of set pressure (API 520). Excessive inlet loss causes valve instability. Keep inlet lines short and full bore.
• Missing certification: A valve without a proper test certificate (ISO 4126 or ASME UV stamp) provides no legal or engineering assurance of conformity.
• Skipping periodic re-testing: Safety valves require periodic testing and recertification — typically every 2 to 5 years depending on service conditions. Failure to test is both a safety risk and a regulatory violation.

The Normative Framework: PED, ASME & ISO 4126

Understanding which standards govern your installation is essential for procurement and compliance:

• PED 2014/68/EU: Covers pressure equipment placed on the EU market. Safety valves typically fall in Category IV, the highest risk category, and require third-party certification by a Notified Body.
• ASME Section VIII + UV Stamp: Governs design, fabrication, inspection, and certification of pressure vessels and relief devices. Required for North American markets and widely accepted globally.
• ISO 4126 (Parts 1–9): The international standard covering design, sizing, testing, and marking of safety devices for all fluid types. Widely adopted alongside PED and ASME.
• API 520 / 521 / 526: Industry-specific standards for sizing, selection, installation, and flange dimensions of pressure-relieving systems in refineries and petrochemical plants.
• ATEX 2014/34/EU: Applies to equipment and protective systems intended for use in potentially explosive atmospheres (Zones 0, 1, and 2).

Conclusions: The Value of Getting It Right

Selecting the correct safety valve is a multi-dimensional engineering decision that directly affects plant safety, regulatory compliance, and long-term operating costs. When the selection process is carried out rigorously — accounting for set pressure, capacity, back pressure, fluid properties, material compatibility, and the applicable normative framework — the result is a device that:

• Protects personnel and assets by reliably opening at the correct set point
• Minimises process disruption through tight, stable shut-off during normal operation
• Reduces lifecycle costs by avoiding premature seat wear, chatter, and unscheduled replacements
• Ensures full compliance with PED, ASME, ISO 4126, and ATEX requirements
• Provides documented traceability from design calculation to certified test report

The engineering investment in a properly specified valve is always dwarfed by the cost of failure. Safety is not the place to compromise.
